Magnetic bead separation is one of the most widely used methods for isolating immune cells in immunology and immuno-oncology research. But not all magnetic beads are equal. Beyond how pure the isolated population is, a factor that often decides whether an experiment succeeds is what the beads do to the cells: whether they preserve viability, leave cells functionally unperturbed, and remain compatible with sensitive downstream assays.
Bead size and the amount of label applied to each cell are central to this. Large beads and heavy labeling can stress cells, occupy surface receptors, and interfere with function, whereas nanoscale beads with minimal labeling aim to enrich or deplete populations while leaving the cells as close to their native state as possible. MileCell MagSep® nanomagnetic beads are built on 100 nm superparamagnetic nanoparticles designed precisely for this purpose.
This article explains what nanomagnetic beads are, why size and labeling matter for viability and function, and how a 100 nm, minimally labeling design delivers high-purity immune cell isolation without compromising the cells you need for downstream work.
What Are Nanomagnetic Beads for Immune Cell Separation?
Nanomagnetic beads are superparamagnetic nanoparticles conjugated to monoclonal antibodies that bind a target surface marker. When a labeled cell suspension is placed in a magnetic field, bead-bound cells are retained while unlabeled cells flow through, enabling either enrichment of a target population (positive selection) or removal of unwanted cells to leave the target untouched (negative selection).
MileCell MagSep® Immune Cell Separation MicroBeads use 100 nm superparamagnetic nanoparticles that bind target cells through surface-conjugated monoclonal antibodies, enabling efficient enrichment or depletion of specific populations. Because the particles are nanoscale rather than micron-scale, they label cells lightly and are compatible with a broad range of downstream applications.
Why Bead Size and Labeling Matter for Viability and Function
The physical burden a bead places on a cell scales with its size and the number of beads bound. Larger beads add mass, can trigger receptor clustering and signaling, and may need to be removed before culture or analysis; heavy labeling can occupy or crosslink surface receptors that are important for the very function a researcher wants to study. Both effects can reduce viability and confound functional readouts.
Nanoscale beads change this calculus. At 100 nm, minimal labeling is sufficient to capture cells magnetically while leaving most of the surface, and the cell's biology, undisturbed. This is why nanoparticle-based separation is favored when preserving viability and native function is essential, for example before functional assays, in vitro expansion, or single-cell sequencing.
How 100 nm Nanomagnetic Beads Protect Viability and Function
1. Nanoscale Size (100 nm) with Minimal Labeling
The core of the design is scale. 100 nm magnetic nanoparticles with minimal labeling ensure maximal cell viability and avoid functional interference, capturing target cells efficiently without the mass, receptor engagement, or removal steps associated with larger beads. Cells emerge close to their native state, ready for demanding downstream use.
2. High-Purity Isolation Without Compromising Cells
Gentle labeling does not mean weaker separation. Using MileCell MagSep® CD8 MicroBeads, CD8+ T cells were enriched from fresh human PBMCs from a starting proportion of 31.8% to 99.5% purity in a single magnetic selection, demonstrating that a 100 nm, minimal-labeling approach delivers high purity while preserving the cells.

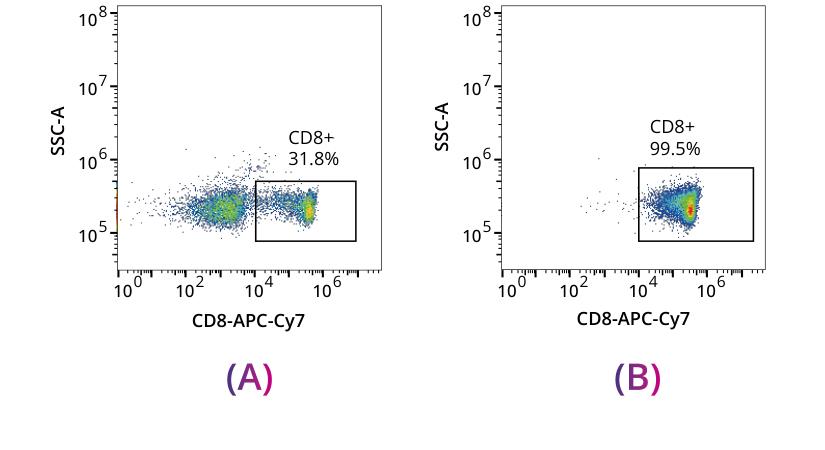

Figure 1. CD8+ T cells isolated from fresh human PBMCs with MileCell MagSep® CD8 MicroBeads, analyzed by flow cytometry. (A) Proportion of CD8+ T cells before separation (31.8%); (B) purity of CD8+ T cells after magnetic selection (99.5%). High purity is achieved with a nanoscale, minimal-labeling bead that preserves cell viability.
3. Biodegradable, Low-Endotoxin, Residue-Free Materials
What the beads are made of matters as much as their size. Biodegradable, low-endotoxin materials minimize the risk of introducing contaminants or residues that could stress cells or interfere with sensitive assays. Residue-free separation means isolated cells can move directly into downstream work without additional cleanup that would add handling and cell loss.
4. Compatibility with Flow Cytometry, Culture, and Single-Cell Sequencing
Preserving viability and function only pays off if the isolated cells integrate seamlessly into the next step. The low-endotoxin, residue-free design enables seamless integration with flow cytometry, in vitro culture, and single-cell sequencing, the workflows where cell quality and freedom from artifacts are most critical. This broad compatibility makes nanomagnetic separation a flexible front end for diverse immunology and immuno-oncology pipelines.
5. Exceptional Batch-to-Batch Consistency
Reproducibility depends on stable reagent quality. Consistent bead manufacturing gives stable product quality that guarantees reproducible experimental outcomes, so that isolation purity, viability, and downstream performance do not drift between lots over the life of a project.
6. Expert-Driven, Target-Specific Design
Effective isolation is tailored to the biology of each target. A deep understanding of human immune cells enables isolation strategies matched to target-cell characteristics, ensuring optimal outcomes for each application, whether enriching a rare population or depleting an abundant one while keeping the target untouched.
Quick reference: what to evaluate in magnetic beads for gentle isolation
| Evaluation Area | Key Question |
| Bead size & labeling | Are beads nanoscale (e.g., 100 nm) with minimal labeling? |
| Viability & function | Is viability preserved and functional interference avoided? |
| Materials | Are materials biodegradable, low-endotoxin, and residue-free? |
| Downstream compatibility | Compatible with flow, culture, and single-cell sequencing? |
| Consistency | Is batch-to-batch consistency documented? |
Positive and Negative Selection, Same Gentle Chemistry
Nanomagnetic separation supports both strategies. Positive selection with MicroBeads directly captures the target cell (available for CD3, CD4, CD8, and CD14), while negative selection with isolation kits removes unwanted cells to leave the target untouched and label-free (available for Pan T and CD8+ T cells). Both rely on the same 100 nm, minimal-labeling chemistry, so researchers can choose the strategy their downstream assay demands without sacrificing viability.
Practical Considerations for Gentle Magnetic Isolation
To translate a gentle bead into gentle results, control the whole workflow: start from healthy, viable cells; keep samples cold and buffers appropriate during labeling; follow recommended bead-to-cell ratios and incubation times to avoid over-labeling; minimize mechanical stress during separation and washing; and confirm post-isolation viability and purity by flow cytometry before committing cells to downstream assays. For sensitive functional work or single-cell sequencing, verify that isolated cells retain expected markers and behavior.
MileCell MagSep® Nanomagnetic Beads
MileCell MagSep® Immune Cell Separation MicroBeads are superparamagnetic 100 nm nanoparticles that bind target cells via surface-conjugated monoclonal antibodies, enabling efficient enrichment or depletion of specific immune cell populations while preserving viability and function.
Key features and benefits:
• Nanoscale precision: 100 nm nanoparticles with minimal labeling for maximal viability and no functional interference
• Expert-driven design: isolation strategies tailored to target-cell characteristics
• High compatibility and residue-free: biodegradable, low-endotoxin materials integrate with flow cytometry, culture, and single-cell sequencing
• Exceptional batch-to-batch consistency for reproducible outcomes
• Positive selection MicroBeads (CD3, CD4, CD8, CD14) and negative selection kits (Pan T, CD8+ T)
MileCell MagSep® is manufactured under ISO 9001, ISO 14001, and ISO 45001 systems by MileCell, based in San Diego, California, to deliver reliable and consistent immune cell isolation for immuno-oncology and immunology research.
FAQ: Nanomagnetic Beads for Cell Isolation
Do 100 nm nanomagnetic beads affect cell viability?
Minimally. At 100 nm with light labeling, the beads capture cells efficiently while leaving most of the cell surface and biology undisturbed, which supports high post-isolation viability and preserved function compared with larger, heavily labeling beads.
Do I need to remove the beads before downstream assays?
Because the nanoparticles are small, biodegradable, low-endotoxin, and residue-free, isolated cells are compatible with flow cytometry, in vitro culture, and single-cell sequencing without dedicated bead-removal steps, reducing handling and cell loss.
Can nanomagnetic beads still deliver high purity?
Yes. In testing, CD8+ T cells were enriched from 31.8% to 99.5% purity in a single positive selection, showing that gentle, minimal labeling and high purity are not mutually exclusive.
Are the beads suitable for single-cell sequencing workflows?
Yes. Low-endotoxin, residue-free materials and minimal cell perturbation make nanomagnetic-isolated cells well suited to single-cell sequencing, where artifacts and contaminants must be minimized.
Conclusion
For immune cell isolation, purity is necessary but not sufficient; the cells must also survive and stay functional. A 100 nm nanomagnetic bead with minimal labeling delivers both, achieving high-purity separation, up to 99.5% for CD8+ T cells, while preserving viability, avoiding functional interference, and remaining residue-free and compatible with flow cytometry, culture, and single-cell sequencing.
Combined with biodegradable low-endotoxin materials, batch-to-batch consistency, and expert-driven, target-specific design, nanoscale magnetic separation gives researchers cells that are both pure and genuinely usable in demanding downstream applications.
Looking for gentle, high-purity immune cell isolation? Explore MileCell MagSep® nanomagnetic beads, or contact the MileCell team to request product information or a quote.
