How Nanomagnetic Beads Improve Cell Isolation

Cell isolation sits upstream of many immunology and immuno-oncology workflows. When a mixed sample contains several immune-cell populations, the separation step determines which cells move forward into flow cytometry, in vitro culture, or single-cell sequencing. The challenge is not simply to capture cells; it is to enrich or deplete the right population while keeping the workflow compatible with what happens next.

Nanomagnetic beads address this problem by combining magnetic separation with antibody-based cell recognition at a nanoscale format. MileCell MagSep™ Immune Cell Separation MicroBeads are described in the product brochure as 100 nm superparamagnetic nanoparticles that bind target cells through surface-conjugated monoclonal antibodies. The same platform supports both enrichment and depletion strategies, allowing researchers to choose positive or negative selection according to the biology of the target population and the downstream assay.

What Makes Nanomagnetic Beads Different?

The core idea behind magnetic cell separation is straightforward: an antibody identifies a cell-surface marker, while a magnetic component enables that labeled population to be separated in a magnetic field. At the nanoscale, the labeling footprint becomes smaller. In the MileCell MagSep™ platform, the magnetic nanoparticles are 100 nm and are designed for minimal labeling, with the stated goal of maximizing cell viability and avoiding functional interference.

Biodegradable, low-endotoxin materials and a residue-free design ensure that the entire isolation process leaves behind no synthetic debris, chemical traces, or immunogenic contaminants.These characteristics are particularly relevant when isolated cells are not an endpoint, but an input for sensitive downstream workflows such as flow cytometry, cell culture, or single-cell sequencing.

MileCell MagSep™ at a Glance

How Nanomagnetic Beads Improve Cell Isolation

1. They connect cell specificity with magnetic handling

A mixed immune-cell sample can contain populations that are close in size and morphology but differ in surface-marker expression. Antibody-conjugated nanomagnetic beads add a molecular recognition step to the physical act of magnetic separation. In the MagSep™ system, the beads bind to target cells through monoclonal antibodies, enabling specific cell populations to be enriched or depleted rather than separated only by bulk physical characteristics.

2. Their nanoscale format supports minimal labeling

For primary immune cells, separation quality is not defined by purity alone. Cells may need to remain suitable for phenotyping, culture, or sequencing after isolation. MileCell positions its 100 nm particle size as a way to minimize labeling while supporting cell viability and limiting functional interference. That design choice matters most when isolated cells are expected to retain biological relevance for downstream experiments.

3. They support two complementary selection strategies

One magnetic platform can answer two different experimental questions. Positive selection directly enriches a marker-defined population. Negative selection removes unwanted populations so that the desired cells remain as the output. MileCell offers both formats, giving researchers a way to align the separation method with whether direct labeling of the target population is desirable for the next assay.

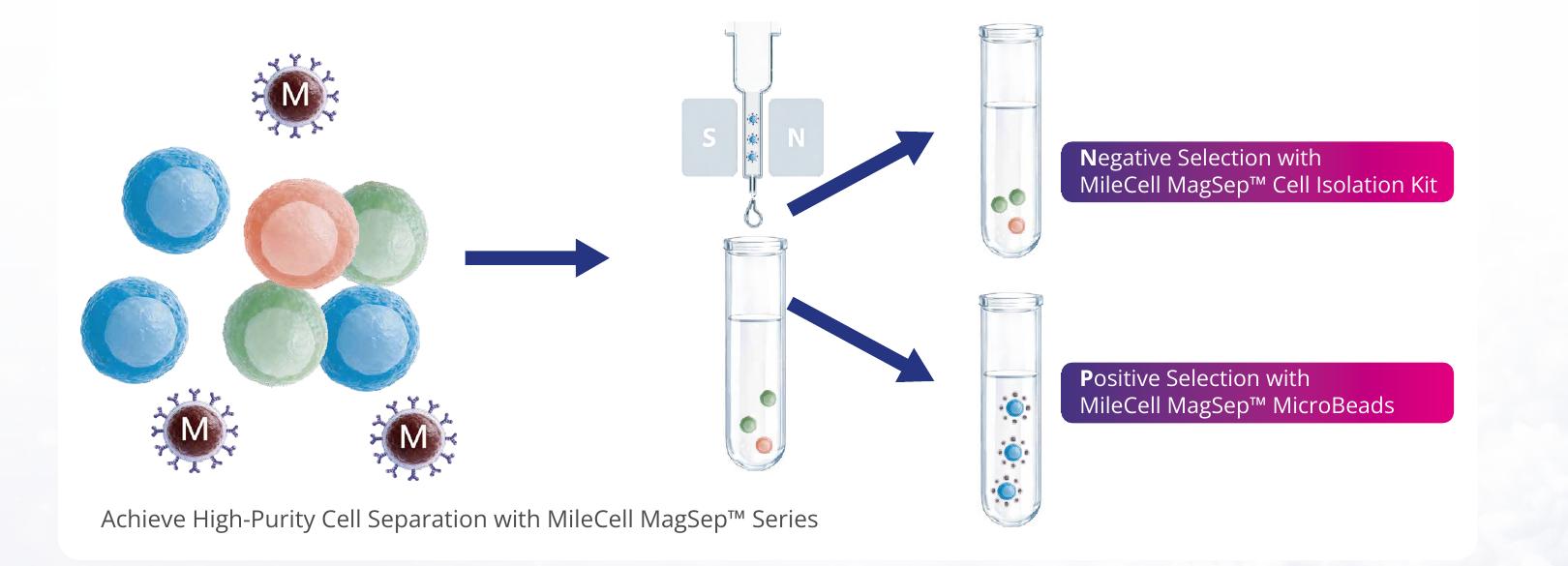

Workflow schematic from the MileCell MagSep™ product brochure: the platform supports both negative selection with Cell Isolation Kits and positive selection with MicroBeads.

4. They are designed for downstream compatibility

Separation is only useful if the isolated cells can move efficiently into the next experimental step. The MagSep™ brochure states that its biodegradable, low-endotoxin materials enable seamless integration with flow cytometry, in vitro culture, and single-cell sequencing. For labs running multistep workflows, this compatibility can simplify method selection because the isolation reagent is considered in the context of the entire experiment, not just the separation step.

5. Consistency helps make repeated experiments more comparable

Cell-isolation experiments are often repeated across donors, treatment groups, or study time points. The MagSep™ product brochure emphasizes exceptional batch-to-batch consistency and stable product quality as a basis for reproducible experimental outcomes. While sample biology can vary, reducing reagent-related variability is an important part of building a repeatable isolation workflow.

Positive vs. Negative Selection: Which Route Fits the Experiment?

The choice between positive and negative selection is not a question of which approach is universally better. It depends on what the downstream experiment needs from the isolated population. MileCell’s portfolio reflects this distinction by offering marker-specific MicroBeads for positive selection and Cell Isolation Kits for negative selection.

What the Performance Data Show in CD8+ T Cell Isolation

Flow cytometry data from fresh human PBMCs confirms: whether you go with direct positive enrichment or negative-selection isolation, CD8+ T cells are purified with high purity and viability. Same target, two optimal solutions — MagSep™ gives you the freedom to choose.

Positive selection with CD8 MicroBeads, Human

In the positive-selection example, CD8+ T cells represented 31.8% of the PBMC sample before separation. After magnetic selection with MileCell MagSep™ CD8 MicroBeads, Human, the isolated population reached 99.5% CD8+ T-cell purity by flow cytometry.

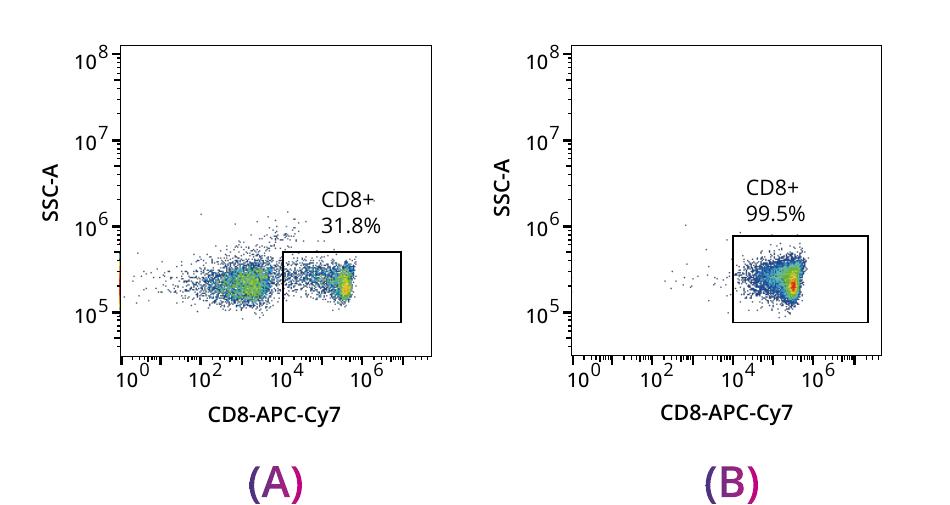

Figure 1. CD8+ T cells isolated from fresh human PBMCs with MileCell MagSep™ CD8 MicroBeads, Human (AB0002). (A) CD8+ T cells were 31.8% of PBMCs before separation. (B) Purity reached 99.5% after magnetic selection. Source: MileCell MagSep™ product brochure.

Negative selection with CD8+ T Cell Isolation Kit, Human

The negative-selection example starts from a different PBMC sample in which CD8+ T cells represented 21.7% of the cells before separation. After magnetic selection with MileCell MagSep™ CD8+ T Cell Isolation Kit, Human, the isolated population reached 97.4% CD8+ T-cell purity by flow cytometry.

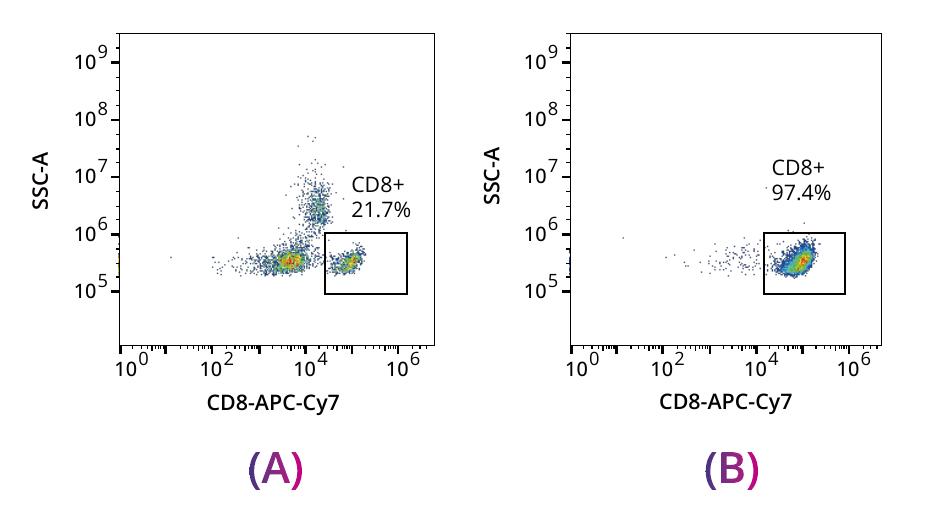

Figure 2. CD8+ T cells isolated from fresh human PBMCs with MileCell MagSep™ CD8+ T Cell Isolation Kit, Human (AB0052). (A) CD8+ T cells represented 21.7% of PBMCs before separation. (B) Purity reached 97.4% after magnetic selection. Source: MileCell MagSep™ product brochure.

MileCell MagSep™ Product Options

The product range is organized around the two selection strategies. Positive selection uses marker-specific MicroBeads, while negative selection uses Cell Isolation Kits for target populations that are isolated through depletion of unwanted cells.

How to match the product to the research question

For a marker-defined population such as pan T cells, CD4+ T cells, CD8+ T cells, or CD14+ monocytes, the corresponding positive-selection MicroBead provides a direct marker-based enrichment route. For workflows that call for negative selection, the portfolio includes Pan T Cell and CD8+ T Cell Isolation Kits. The practical decision is therefore driven by the target cell type and by whether the experimental design favors direct target labeling or depletion of unwanted populations.

Why the “Nano” Part Matters Beyond Separation

The main value of nanomagnetic beads is not simply that they are small. It is that particle size, antibody targeting, material design, and magnetic handling are combined into one isolation reagent. In the MagSep™ platform, the 100 nm format is paired with minimal labeling, biodegradable and low-endotoxin materials, and stated compatibility with three common downstream workflows. That makes the separation step easier to evaluate as part of a complete experimental chain.

For flow cytometry, the isolated population must remain suitable for phenotypic analysis. For in vitro culture, cells need to remain biologically usable after separation. For single-cell sequencing, the quality of the input population directly affects the information entering the downstream workflow. A separation reagent designed with these next steps in mind can reduce the need to redesign the workflow around the isolation chemistry.

Quality Systems and Reproducibility

MileCell highlights ISO 9001 quality management, ISO 14001 environmental management, and ISO 45001 occupational health and safety systems in the MagSep™ product brochure. The brochure also emphasizes stable product quality and exceptional batch-to-batch consistency as contributors to reproducible experimental outcomes.

For research teams comparing results over time, reproducibility depends on more than one successful separation. It also depends on maintaining a consistent workflow across repeated experiments. This is why bead design, lot consistency, and downstream compatibility should be considered alongside purity data when evaluating a magnetic cell-separation reagent.

FAQ: Nanomagnetic Beads for Immune Cell Isolation

What are nanomagnetic beads used for in cell isolation?

They combine antibody-based recognition of cell-surface markers with magnetic separation. In the MileCell MagSep™ system, 100 nm superparamagnetic nanoparticles bind to target cells through surface-conjugated monoclonal antibodies, enabling enrichment or depletion of specific cell populations.

What is the difference between positive and negative magnetic selection?

Positive selection directly enriches a marker-defined target population using marker-specific MicroBeads. Negative selection depletes unwanted populations so that the desired cells remain as the output. MileCell provides both formats in the MagSep™ portfolio.

Are the beads compatible with downstream applications?

The MileCell product brochure states that its biodegradable, low-endotoxin materials enable seamless integration with flow cytometry, in vitro culture, and single-cell sequencing, and it positions the platform as residue-free.

What purity data are shown for CD8+ T-cell isolation?

For positive selection with CD8 MicroBeads, Human, the brochure shows CD8+ T cells increasing from 31.8% before separation to 99.5% purity after magnetic selection. For the CD8+ T Cell Isolation Kit, Human, a separate negative-selection example shows 21.7% before separation and 97.4% purity after magnetic selection.

Conclusion

Nanomagnetic beads improve cell isolation by bringing specificity, magnetic handling, and downstream-aware material design into a single workflow. The strongest system is not defined by bead size alone; it is the combination of marker specificity, minimal labeling, reproducible product quality, and compatibility with the assays that follow separation.

MileCell MagSep™ applies this approach across both positive and negative selection. With 100 nm superparamagnetic nanoparticles, marker-specific MicroBeads, negative-selection Cell Isolation Kits, and representative CD8+ T-cell purity data, the portfolio gives immunology and immuno-oncology researchers multiple routes to build a cell-isolation workflow around their experimental goal.
