As CAR-T and other cell therapies scale from early studies toward routine manufacturing, how cells are frozen becomes as important as how they are made. One decision has outsized impact on logistics and cost: the cell density at which the product is cryopreserved. Freezing at high concentration, for example 2.5 x 10^7 cells/mL rather than a standard 5 x 10^6 cells/mL, shrinks storage volume, reduces the number of vials or bags, simplifies cold-chain shipping, and gives clinicians flexibility in dose preparation.
But concentration comes at a price. High-density cryopreservation is biophysically harder than dilute freezing, and a medium or protocol that performs well at low density can fail as cells are packed together. The central question for manufacturing teams is therefore practical: can CAR-T cells be frozen at high density without sacrificing viability, viable cell recovery, or the CAR expression that defines potency?
This article explains why high-density freezing is challenging, what to control to protect cells, and shows data from CD19 CAR-T cells cryopreserved at 2.5 x 10^7 cells/mL in a chemically defined CGT freezing medium, demonstrating that high density and high quality are not mutually exclusive.
Why Freeze CAR-T Cells at High Density?
High-density cryopreservation concentrates more cells into less volume, which delivers several practical advantages across a cell therapy workflow. It reduces the footprint of liquid nitrogen storage, lowers the number of containers to label, track, and ship, and cuts cold-chain cost and complexity. Concentrated drug substance also gives formulation and clinical teams flexibility: a single high-density lot can be diluted to different doses without re-freezing, and smaller fill volumes can reduce the amount of cryoprotectant infused into the patient at administration.
For autologous CAR-T, where each batch is a single patient's dose, and for allogeneic products banked at scale, these efficiencies compound. The barrier to capturing them has always been whether cell quality survives concentration, which is why a validated high-density process is so valuable.
Why High-Density Cryopreservation Is Challenging
Packing cells together changes the physics and chemistry of freezing. Several stresses intensify with density, and each can reduce post-thaw viability and function if not controlled:
• Cryoprotectant competition: more cells share the same amount of cryoprotectant, so per-cell protection can drop unless the formulation is optimized for concentrated suspensions.
• Heat release during freezing: dense cell suspensions release more latent heat as they freeze, which can slow local cooling and create uneven ice formation across the container.
• Osmotic and metabolic stress: concentrated cells experience greater osmotic shifts and accumulate metabolic byproducts, increasing stress before and after freezing.
• Mass-transfer limits: cryoprotectant must diffuse evenly through a crowded suspension, and incomplete equilibration leaves some cells under-protected.
Because of these effects, high-density performance must be demonstrated directly. A medium validated only at dilute density cannot be assumed to protect cells at five-fold higher concentration; the freezing medium, container, cooling rate, and thaw must be qualified together at the intended density.
Maintaining Viability and Potency at High Density: The Data
To test whether CAR-T quality holds at high density, three independent CD19 CAR-T batches were cryopreserved in Kryogene Cell Freezing Media - CGT at a concentrated 2.5 x 10^7 cells/mL, then assessed before freezing and at 0h and 24h post-thaw for viability, CAR expression, and cell density.

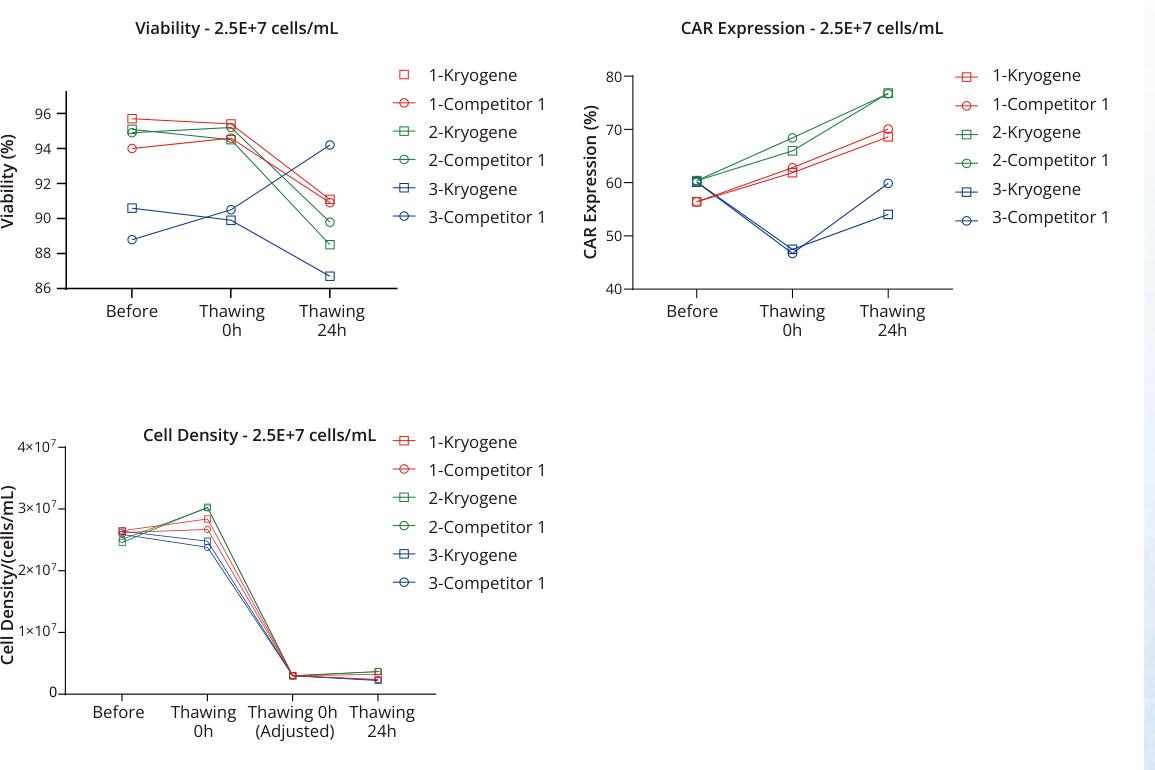

Figure 1. Post-thaw performance of three CD19 CAR-T batches cryopreserved at a high density of 2.5 x 10^7 cells/mL in Kryogene Cell Freezing Media - CGT versus a competitor. Cell viability (%), CAR expression (%), and cell density (cells/mL) were assessed before freezing and at 0h and 24h post-thaw. Even at this concentrated density, CAR-T cells maintained high post-thaw viability and recovered CAR expression by 24h.
As Figure 1 shows, high post-thaw viability was maintained and CAR expression, which can dip transiently at 0h as cells recover, returned by 24h even at 2.5 x 10^7 cells/mL. In other words, concentrating the cells five-fold did not compromise the attributes that determine CAR-T dose and potency.
High Density vs. Standard Density: Performance Holds
The value of a high-density process is clearest when performance matches what is achieved at standard density. The same panel of CD19 CAR-T batches was also frozen at a conventional 5 x 10^6 cells/mL, providing a direct baseline.

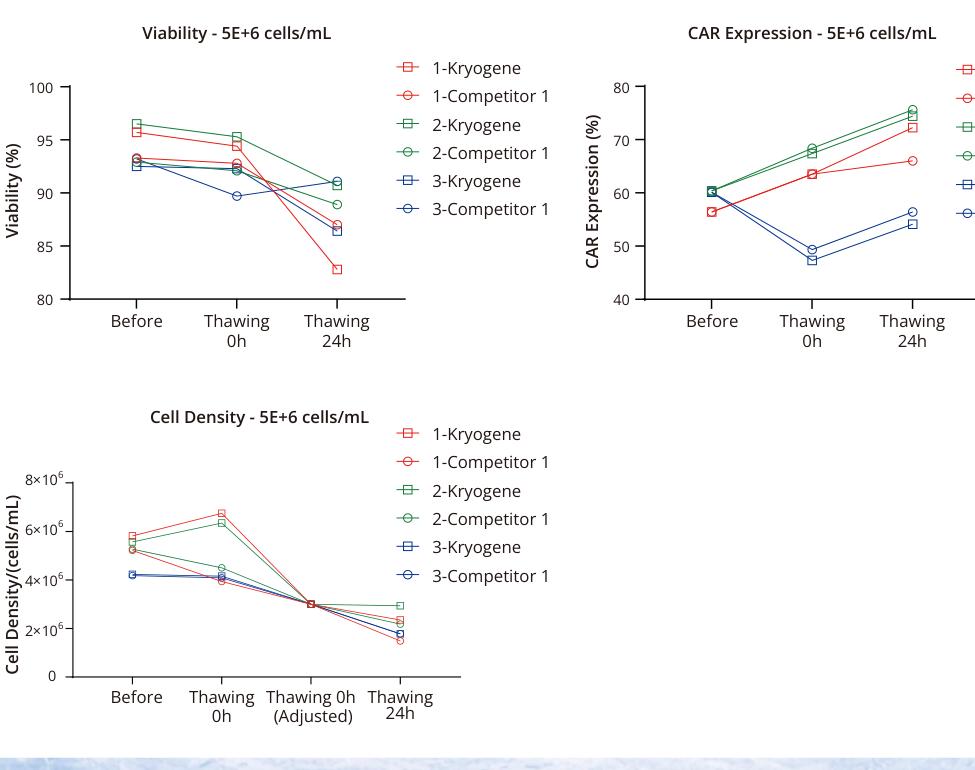

Figure 2. The same post-thaw assessment at a standard density of 5 x 10^6 cells/mL. Viability, CAR expression, and cell density followed comparable trends to the high-density condition, indicating that Kryogene Cell Freezing Media - CGT preserves CAR-T quality consistently across a five-fold density range.
Comparing Figure 1 and Figure 2, viability and CAR expression trajectories are similar across both densities. This consistency across a five-fold range is the practical proof teams need: they can adopt high-density freezing to capture logistical and cost benefits without trading away product quality.
How to Protect Cells During High-Density Freezing
Realizing high-density performance depends on qualifying the whole process at the target concentration, not just choosing a medium. Key controls include:
1. Use a Freezing Medium Optimized for Concentrated Suspensions
Select a chemically defined, serum- and protein-free CGT medium engineered to minimize ice crystal formation and validated at the intended high density. A defined formulation removes lot-to-lot variability that becomes even more consequential when cells are concentrated.
2. Control the Cooling Rate
Use controlled-rate freezing so that latent heat released by the dense suspension is managed and ice forms uniformly across the container. Uncontrolled or passive cooling is more likely to produce gradients and uneven protection at high density.
3. Standardize Container, Fill Volume, and Equilibration
Keep container geometry and fill volume consistent so heat and mass transfer are reproducible, and allow adequate cryoprotectant equilibration before freezing so every cell in the crowded suspension is protected.
4. Optimize Thawing and Post-Thaw Handling
Thaw rapidly and dilute gently to limit osmotic shock, then, where the assay or process requires, allow a brief recovery before measuring or dosing. Assess viability, viable cell recovery, and CAR expression at multiple time points, including 24h, because concentrated cells may show a transient post-thaw dip that resolves during recovery.
Quick reference: what to control for high-density CAR-T freezing
| Control Point | Key Question |
| Freezing medium | Is a defined CGT medium validated at the target high density? |
| Cooling rate | Is controlled-rate freezing used to manage latent heat? |
| Container & fill | Are container geometry and fill volume standardized? |
| Equilibration | Is cryoprotectant fully equilibrated in the dense suspension? |
| Post-thaw assessment | Are viability, recovery, and CAR expression checked at 24h? |
Practical Considerations for High-Density Cell Banking
Beyond the freeze itself, plan the broader workflow: confirm cell health and density before freezing, reserve enough medium from a single lot to cover a campaign, document lot-specific performance at the target density, and validate the full freeze-thaw process under the storage and shipping conditions the product will actually experience. Because high-density behavior differs from dilute freezing, protocols validated at low density should be re-confirmed rather than assumed.
Kryogene Cell Freezing Media - CGT for High-Density Freezing
Kryogene Cell Freezing Media - CGT is a chemically defined, serum- and protein-free cryopreservation solution developed for next-generation cell therapies, including CAR-T, NK, MSC, and iPSC workflows. It is engineered to minimize ice crystal formation and preserve cell integrity through freezing, storage, and post-thaw recovery, and, as shown above, maintains high post-thaw viability and CAR expression recovery even at a concentrated 2.5 x 10^7 cells/mL.
Key features and benefits:
• Validated high-density performance: preserves viability and CAR expression at 2.5 x 10^7 cells/mL
• Superior cryoprotection: minimizes ice crystal formation to protect cells through freeze-thaw
• Chemically defined, serum- and protein-free: removes undefined components and lot-to-lot variability
• Clinical-grade manufacturing: cGMP standards with USP-compliant raw materials and regulatory alignment
• Ready-to-use and consistent: closed, single-use manufacturing for batch-to-batch consistency
The product is supplied as 100 mL in a bottle (Cat. No. AR0008-100) or bag (Cat. No. AR0008-100B) and stored at 2-8 degrees C. Kryogene is the cryobiology brand of MileCell, based in San Diego, California, with products manufactured under ISO 9001, ISO 14001, and ISO 45001 systems. The range also includes Cell Freezing Media - Serum Free for complementary needs.
FAQ: High-Density CAR-T Cryopreservation
Can CAR-T cells be frozen at 2.5 x 10^7 cells/mL without losing quality?
Yes. In testing with three CD19 CAR-T batches, Kryogene Cell Freezing Media - CGT maintained high post-thaw viability and recovered CAR expression by 24h at 2.5 x 10^7 cells/mL, with trends comparable to standard 5 x 10^6 cells/mL freezing.
Why is high-density freezing harder than dilute freezing?
Concentrated cells compete for cryoprotectant, release more latent heat during freezing, and experience greater osmotic and metabolic stress, all of which can reduce viability and function if the medium and protocol are not optimized and validated at the target density.
What are the benefits of high-density cryopreservation?
High-density freezing reduces storage volume, container count, and cold-chain cost, and allows a concentrated lot to be diluted to different doses without re-freezing. It can also reduce the volume of cryoprotectant delivered at administration.
What should I control to succeed at high density?
Use a defined CGT medium validated at the target density, apply controlled-rate freezing, standardize container and fill volume, allow cryoprotectant equilibration, thaw rapidly with gentle dilution, and assess viability, recovery, and CAR expression at multiple time points including 24h.
Conclusion
High-density cryopreservation offers real logistical and cost advantages for CAR-T manufacturing, but only if cell quality survives concentration. The physics of dense freezing, cryoprotectant competition, heat release, osmotic stress, and mass-transfer limits, make direct validation essential. Data from CD19 CAR-T cells show that with a chemically defined CGT freezing medium and a controlled process, high post-thaw viability and recovered CAR expression can be maintained at 2.5 x 10^7 cells/mL, comparable to standard density.
For teams looking to streamline storage, shipping, and dosing, a validated high-density process built on a defined, cGMP freezing medium turns concentration from a risk into an advantage, without compromising the viability and potency that define a CAR-T product.
